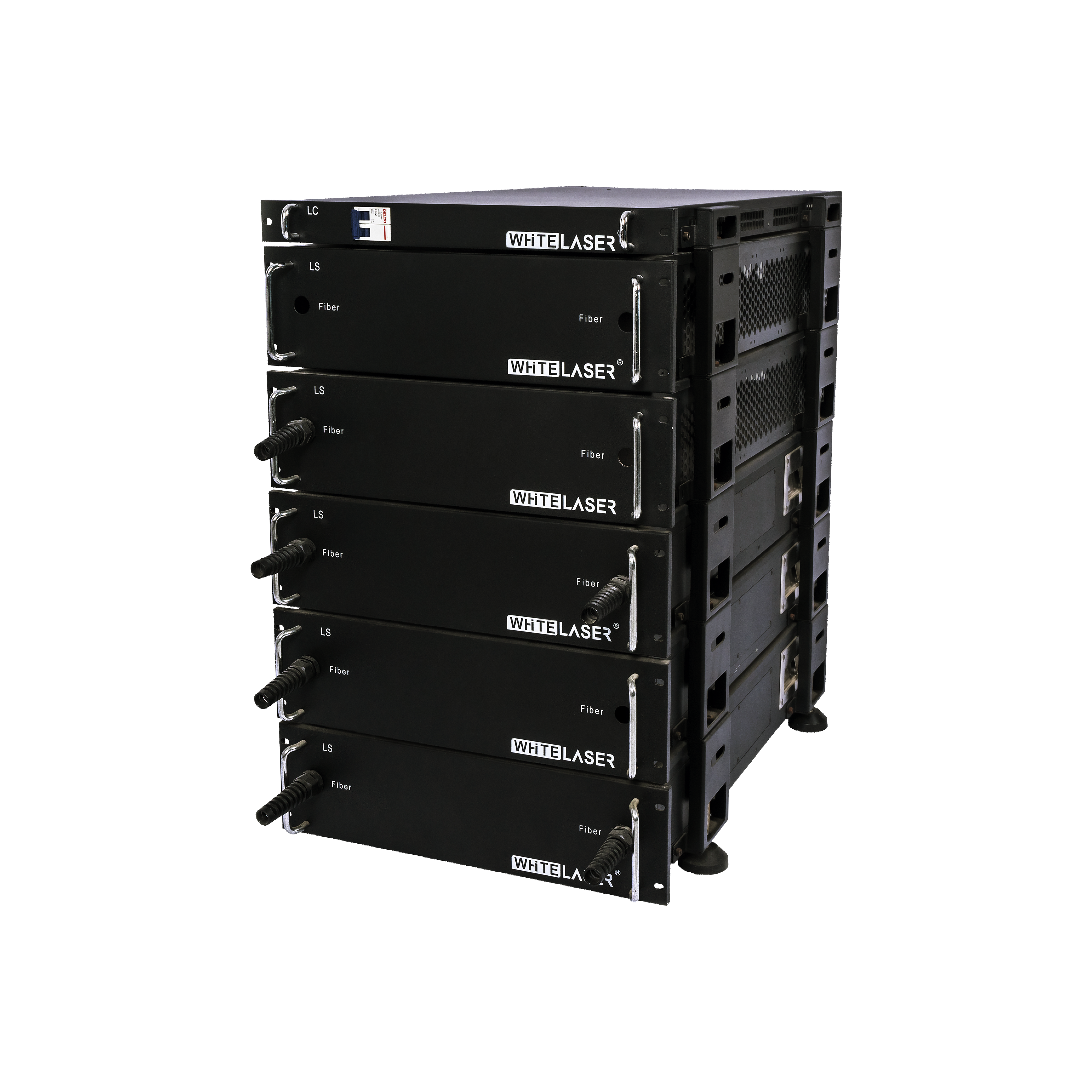

型号 Model | LTH-wRGB-Gx |
光源类型 Light Source Type | RGB纯激光光纤耦合 RGB Laser;Fiber Coupling |
制冷方式 Cooling System | TEC+液冷循环Liquid Cooling |
输出亮度 Output Brightness | 7klm-60klm屏幕亮度 On Screen |
色彩控制 Color Control | 自动白平衡,色温D55-D90可调Auto White balance.Color temperature D55-D90. |
工作电压 Operating Voltage | 90V-280V |
工作温度 Operating Temperature | -20℃-+40℃ |
工作湿度 Operating Humidity | 10%-85%RH |
电功率 Supply Power | 屏幕输出每一万流明≤900W ≤900W/1klm(Luminous Flux on Screen) |
安全设计 Safety Policy | 过温保护,联动控制,物联网实时监测 Over-temperature Protection, Interlock Control and IoT Real-time Monitoring |
