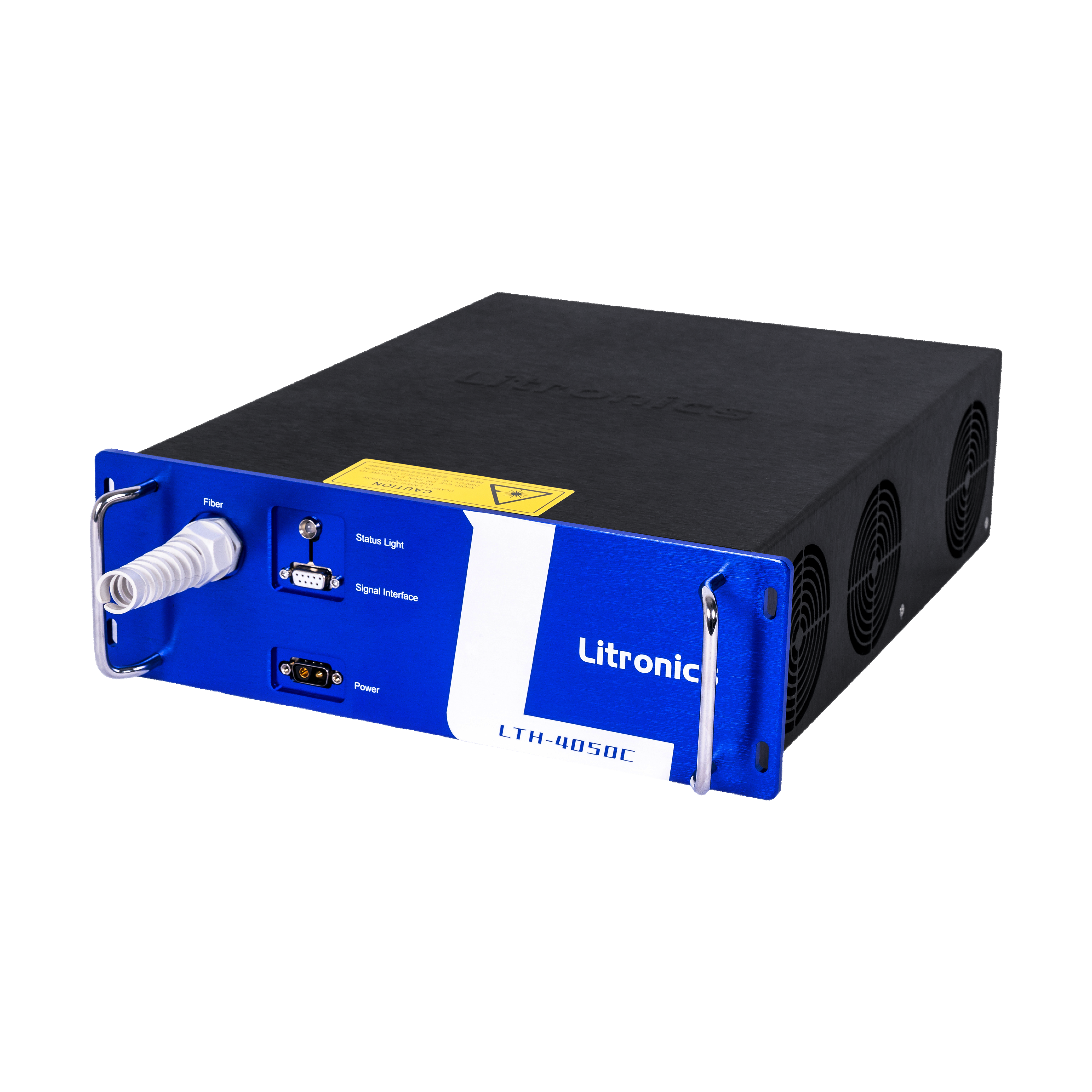

产品 Product | 低散斑激光光源 Low-speckle Laser Source |
工作波长 Operating Wavelength | 402nm,波长带宽6nm@1/e2 402 nm,wavelength bandwidth of 6nm(@1/e²) |
输出功率 Output Power | 10w,波动<1% 10w with fluctuation <1% |
光纤 Fiber Parameter | SMA905(可定制),Max NA0 .22 SMA905(customizable),Maximum NA 0.22 |
外形尺寸 Dimensions | 377.7mm*290mm*102mm |
重量 Weight | 5.8KG |
散热 Cooling System | TEC+风冷 TEC+Air Cooling |
驱动电压/功耗 Driving Voltage/Electrical Power | 24V |
I/O | D-sub |
报警信息 Alarm | 过温&过压 Over-Temperature &Over-Voltage Protection |
工作温度/湿度 Operating Temperature/Humidity | +10℃~+30℃,<70%RH |
其他功能 Additional Features | 功率反馈/自动调节风扇转速 Power Feedback/Automatic Fan Speed Regulation |
